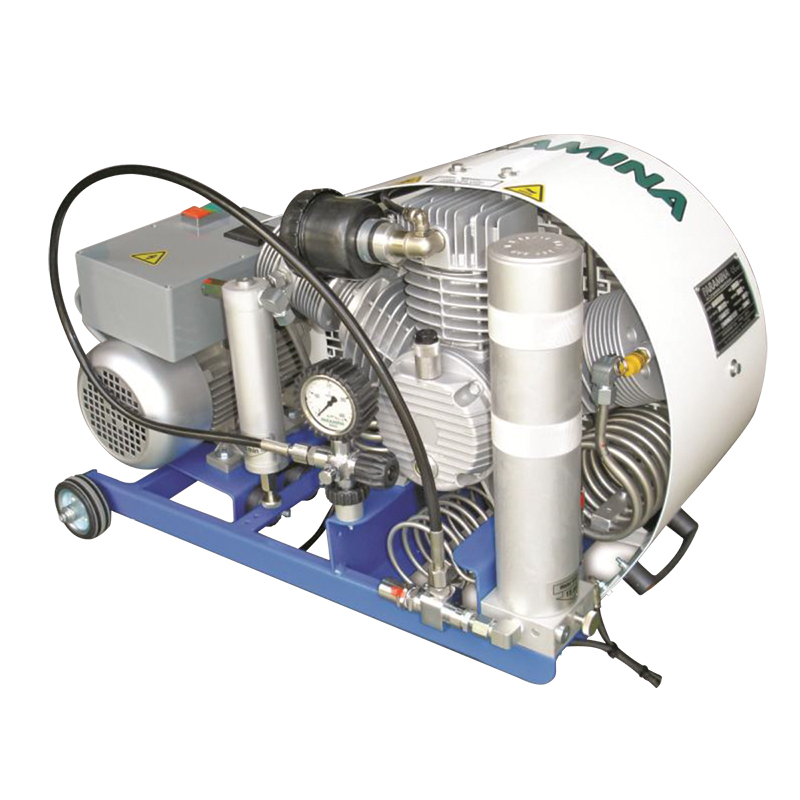

Compressor, high pressure, MISTRAL M6-ET 440V 60 Hz 300 Bar

Specifications High- pressure piston compressor
Air Delivery Fad 103 lit/min - 6,2m3/h
Max. Working Pressure 330 bar
Stages 3
Speed Rotation 1200rpm
Transmission V Belt
Motor Power

2,2kW/3Hp - 220V/ 50-60Hz

or 400-440V/50-60Hz (Class F, IP 55)

Dimensions (L-W-H) 72 x 38 x 47 cm
Weight 53-54 kg



Image Code Description
[72706] Compressor, high pressure, MISTRAL M6-ET 440V 60 Hz 300 Bar image 72706 Compressor, high pressure, MISTRAL M6-ET 440V 60 Hz 300 Bar
