International Liferaft ISO-RAFT, ISO 9650-1

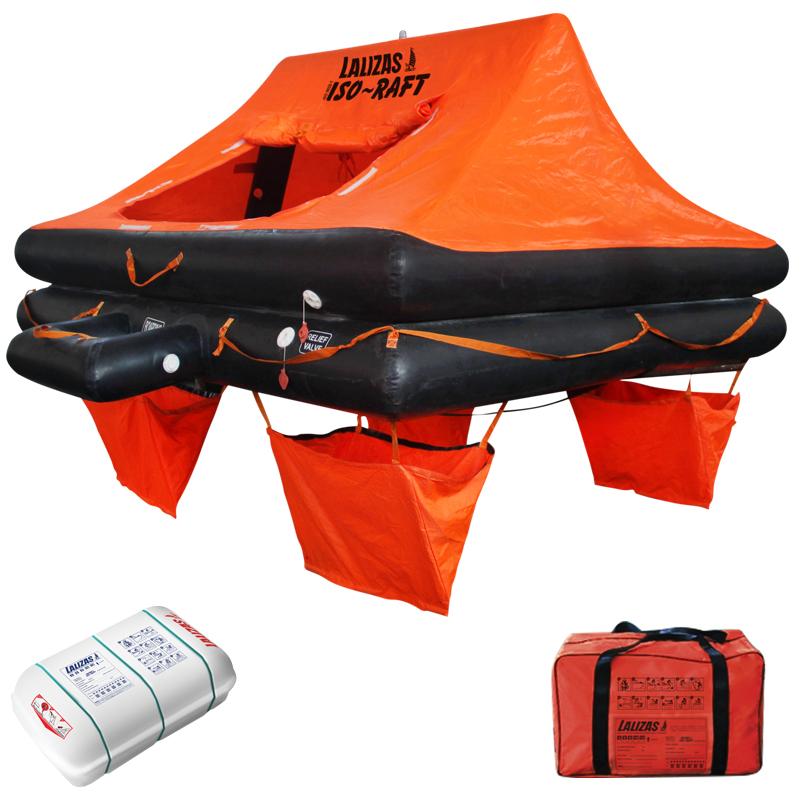

LALIZAS ISO-RAFT can be used on recreational boats and is certified according to ISO 9650-1 testing standard for Safety and offers highly visible, stable and sheltered conditions for the occupants. This
testing standard has been adopted by the most European Countries. This liferaft is available in 4 to 12 person versions, fitted with a single floor as standard and designed to be extremely safe. The ISORAFT
combines compact size and structural integrity with proven liferaft design. It is automatically inflated by a 12-meter painter line and its inflation system provides enough gas to inflate all the buoyancy
chambers. The main body of the life raft consists of two buoyant chambers inflated through a non return valve ensuring the flotation of the liferaft.
Each chamber is capable of fully supporting the raft with its maximum number of occupants. It can be packed either in a canister or in a waterproof valise. Ιt is initially certified by Polish Register of
Shipping-1463 and furthermore approved by the Maritime Authority of the Country of Destination in case it is needed.

Features & Specifications

  • Thermally insulated floor
  • International orange, self erecting canopy with retro-reflective tapes
  • Τwin independent buoyancy tubes containing safety valves
  • Rain water collection gutter
  • Ventilation and observation port
  • Fully closeable entrance flap wit zip tape. The 10 to 12 person versions also include an additional entrance.
  • External, internal lifelines and righting device suitable for handling even by one person
  • Comprehensive international service centers
  • Operating temperature -15° C to + 65° C
  • Stowage max height: 6m above sea level

Standard Equipment:

1. Portable buoyant bailer (1pc)
2. Sponge (2pcs)
3. Pair of buoyant paddles (1pc)
4. Whistle (1pc)
5. Waterproof torch /bulb (2pcs)
6. Signalling mirror (1pc)
7. Anti-seasickness pills/per person (6pcs)
8. Seasickness bag/per person (1pc)
9. Red hand flare (in accordance with SOLAS LSA Code Chapter III, 3.2) (3pcs)
10. Red parachute flares (in accordance with SOLAS LSA Code Chapter III, 3.1) (2pcs)
11. Repair kit (1pc)
12. Bellow (1pc)
13. Operational Manual (1pc)
14. Table of the life-saving signals (1pc)
15. Log Book + Immediate actions Card (1pc)
16. Mooring Ring with 30m rope (1pc)
17. Safety knife connected to the liferaft, buoyant, fixed blade, rounded tips (1pc)
18. Floating anchor with 30m rope (1pc)

Image Code Weight (kg) Max Persons A B H Container L W
[78800] LALIZAS Intern. Liferaft ISO-RAFT 4 prs canister image 78800 38kg 4 1170mm 1634mm 330mm Canister 760mm 480mm
[78810] LALIZAS Intern. Liferaft ISO-RAFT 6 prs canister image 78810 42kg 6 1200mm 1956mm 330mm Canister 760mm 480mm
[78820] LALIZAS Intern. Liferaft ISO-RAFT 8 prs canister image 78820 50kg 8 1250mm 2224mm 345mm Canister 770mm 550mm
[78830] LALIZAS Intern. Liferaft ISO-RAFT 10 prs canister image 78830 56kg 10 1300mm 2458mm 355mm Canister 820mm 570mm
[78840] LALIZAS Intern. Liferaft ISO-RAFT 12 prs canister image 78840 62kg 12 1350mm 2667mm 340mm Canister 920mm 570mm
[78850] LALIZAS Intern. Liferaft ISO-RAFT 4 prs valise image 78850 32kg 4 1170mm 1634mm 400mm Valise 680mm 250mm
[78860] LALIZAS Intern. Liferaft ISO-RAFT 6 prs valise image 78860 36kg 6 1200mm 1956mm 420mm Valise 710mm 280mm
[78870] LALIZAS Intern. Liferaft ISO-RAFT 8 prs valise image 78870 38kg 8 1250mm 2224mm 420mm Valise 710mm 280mm
[78880] LALIZAS Intern. Liferaft ISO-RAFT 10 prs valise image 78880 45kg 10 1300mm 2458mm 470mm Valise 800mm 300mm
